Scientific plotting with seaborn#

In this tutorial, we will use some of the measurements taken in the course and visualize them nicely using the seaborn Python library. Seaborn comes with the advantage that it interacts very nicely with the DataFrame format from the Python pandas library - a convenient way of handling tabular data in Python.

For more detailed information: You may have been used to using Matplotlib for plotting in Python. In a way, seaborn is just matplotlib - but it expands the functionality of matplotlib to be easier to use for more complex visualizations.

Let’s load all the packages we need here:

import seaborn as sns
from pathlib import Path
import pandas as pd

Loading the data#

As a first step, we need to load the measurements from napari. Alternatively, you can download some from the course repository here. For this, we need to compile a list of all .csv files we take into account.

root = './measurements'

file_paths = [file_path for file_path in Path(root).iterdir() if file_path.suffix == '.csv']
file_paths
[WindowsPath('measurements/17P1_POS0006_D_1UL_features.csv'),
 WindowsPath('measurements/17P1_POS0007_D_1UL_features.csv'),
 WindowsPath('measurements/17P1_POS0011_D_1UL_features.csv'),
 WindowsPath('measurements/20P1_POS0005_D_1UL_features.csv'),
 WindowsPath('measurements/20P1_POS0007_D_1UL_features.csv'),
 WindowsPath('measurements/20P1_POS0008_D_1UL_features.csv'),
 WindowsPath('measurements/20P1_POS0010_D_1UL_features.csv'),
 WindowsPath('measurements/A9_p5d_features.csv'),
 WindowsPath('measurements/A9_p7d_features.csv'),
 WindowsPath('measurements/A9_p9d_features.csv')]

Next, we load them all into pandas dataframes. For this, we go through the data in a for-loop, load each file and then concatenate all the tabular data into a single table. Let’s look into a single dataframe first to see what we are dealing with. The df.head(5) command shows us the first 5 rows of the table so that we don’t clutter our output with tons of tabular data:

first_file = file_paths[0] # Get the first file path
df = pd.read_csv(first_file) # Load the first dataframe
df.head(5) # Display the first 5 rows of the dataframe
label area_filled perimeter axis_major_length axis_minor_length eccentricity area intensity_mean intensity_max intensity_min
0 1 29.0 18.863961 7.853437 4.935022 0.777898 29.0 58.724138 67.0 49.0
1 2 32.0 24.242641 12.953143 3.174186 0.969510 32.0 73.343750 118.0 40.0
2 3 316.0 65.112698 22.947857 17.642785 0.639465 316.0 95.332278 248.0 22.0
3 4 258.0 60.284271 22.477335 14.716400 0.755870 258.0 113.585271 204.0 19.0
4 5 59.0 32.278175 15.198125 5.328297 0.936529 59.0 80.881356 162.0 35.0

Let’s load everything now!

Hint We may want to distinguish from which dataset which measurement came. To do so, we simply add another column to each dataframe, that indicates from whhich image the respective measurement comes.

big_df = pd.DataFrame() # create empty dataframe

for file_path in file_paths: # iterate over all files
    df = pd.read_csv(file_path)  #load dataframe
    df['sample'] = file_path.stem  # add column with sample name
    big_df = pd.concat([big_df, df], axis=0)  # append table to big_df

big_df = big_df.reset_index(drop=True)  # reset index
big_df
label area_filled perimeter axis_major_length axis_minor_length eccentricity area intensity_mean intensity_max intensity_min sample
0 1 29.0 18.863961 7.853437 4.935022 0.777898 29.0 58.724138 67.0 49.0 17P1_POS0006_D_1UL_features
1 2 32.0 24.242641 12.953143 3.174186 0.969510 32.0 73.343750 118.0 40.0 17P1_POS0006_D_1UL_features
2 3 316.0 65.112698 22.947857 17.642785 0.639465 316.0 95.332278 248.0 22.0 17P1_POS0006_D_1UL_features
3 4 258.0 60.284271 22.477335 14.716400 0.755870 258.0 113.585271 204.0 19.0 17P1_POS0006_D_1UL_features
4 5 59.0 32.278175 15.198125 5.328297 0.936529 59.0 80.881356 162.0 35.0 17P1_POS0006_D_1UL_features
... ... ... ... ... ... ... ... ... ... ... ...
919 144 200.0 52.384776 18.530911 14.190467 0.643111 200.0 78.305000 142.0 28.0 A9_p9d_features
920 145 21.0 20.207107 12.476841 1.973087 0.987417 21.0 50.523810 65.0 39.0 A9_p9d_features
921 146 250.0 78.284271 32.580598 11.991364 0.929805 250.0 74.804000 151.0 31.0 A9_p9d_features
922 147 23.0 18.242641 9.710753 3.102526 0.947588 23.0 53.478261 69.0 40.0 A9_p9d_features
923 148 56.0 31.692388 14.232087 5.310151 0.927787 56.0 59.982143 85.0 37.0 A9_p9d_features

924 rows × 11 columns

From the data here we can see that there are three different sample types - A9, 17P1 and 20P1. Let’s add a column to the dataframe that indicates from which type the respective image was taken. We can do this by splitting the sample name, getting the first part of the name and adding it as a new column to the dataframe.

big_df['experiment'] = big_df['sample'].apply(lambda x: x.split('_')[0]) # Split the sample name by underscore and take the first part as the experiment name
big_df
label area_filled perimeter axis_major_length axis_minor_length eccentricity area intensity_mean intensity_max intensity_min sample experiment
0 1 29.0 18.863961 7.853437 4.935022 0.777898 29.0 58.724138 67.0 49.0 17P1_POS0006_D_1UL_features 17P1
1 2 32.0 24.242641 12.953143 3.174186 0.969510 32.0 73.343750 118.0 40.0 17P1_POS0006_D_1UL_features 17P1
2 3 316.0 65.112698 22.947857 17.642785 0.639465 316.0 95.332278 248.0 22.0 17P1_POS0006_D_1UL_features 17P1
3 4 258.0 60.284271 22.477335 14.716400 0.755870 258.0 113.585271 204.0 19.0 17P1_POS0006_D_1UL_features 17P1
4 5 59.0 32.278175 15.198125 5.328297 0.936529 59.0 80.881356 162.0 35.0 17P1_POS0006_D_1UL_features 17P1
... ... ... ... ... ... ... ... ... ... ... ... ...
919 144 200.0 52.384776 18.530911 14.190467 0.643111 200.0 78.305000 142.0 28.0 A9_p9d_features A9
920 145 21.0 20.207107 12.476841 1.973087 0.987417 21.0 50.523810 65.0 39.0 A9_p9d_features A9
921 146 250.0 78.284271 32.580598 11.991364 0.929805 250.0 74.804000 151.0 31.0 A9_p9d_features A9
922 147 23.0 18.242641 9.710753 3.102526 0.947588 23.0 53.478261 69.0 40.0 A9_p9d_features A9
923 148 56.0 31.692388 14.232087 5.310151 0.927787 56.0 59.982143 85.0 37.0 A9_p9d_features A9

924 rows × 12 columns

Plotting: Distributions#

Now for the actual plotting: Let’s try it with a histogram of the nuclei sizes first. The seaborn syntax is very simple: we pass the measurements table big_df directly to the plotting function (sns.histplot) and tell seaborn which variable (column) to take into account for the histogram.

We store each plot result in a variable fig + number so that we can save it later on.

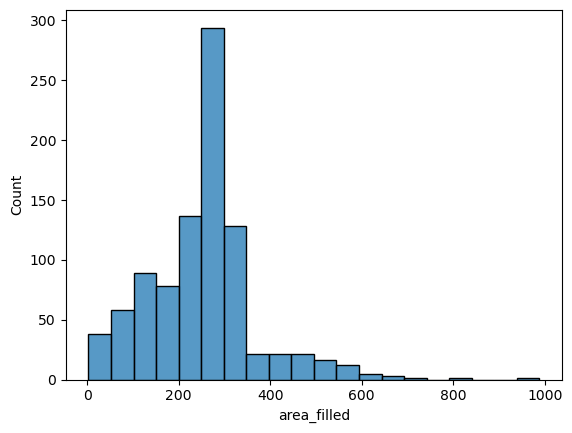

fig1 = sns.histplot(data=big_df, x='area_filled', bins=20)
../_images/15495a1e5c15e1c65181b5f16e280d0881f32fc24343f8326d0ca683263016a8.png

Seaborn also offers to turn this into a smoothed distribution estimate (a kernel-density estimation):

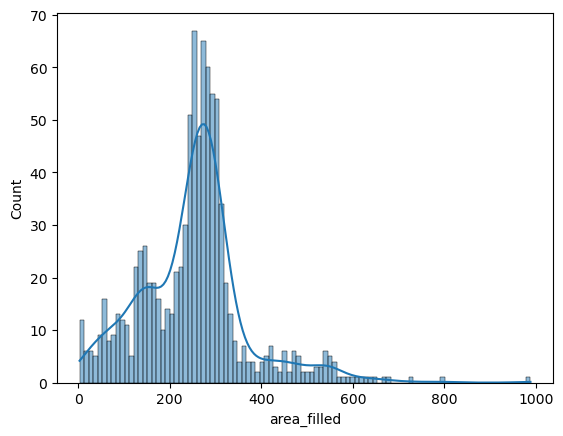

fig2 = sns.histplot(data=big_df, x='area_filled', bins=100, kde=True)
../_images/94f497804067f2e23442b0276db0051f0ab9084a4b41042c0845df6302bea852.png

But where seaborn really shines, is when it comes to comparing different groups in datasets (i.e., categorical variables). If we wanted to compare directly how the nuclei sizes differ between the different conditions (i.e., images), we can simply pass sample on to seaborn as the hue parameter:

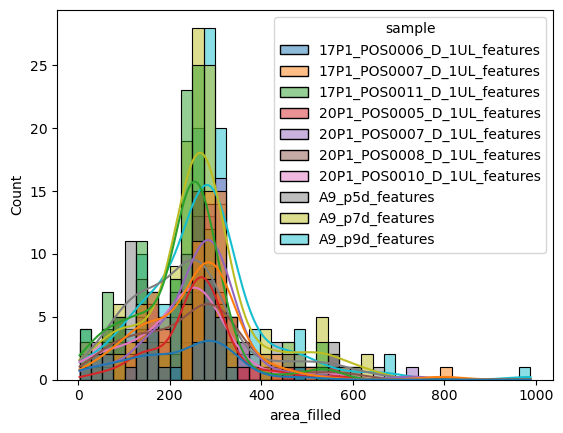

fig3 = sns.histplot(data=big_df, x='area_filled', hue='sample', kde=True)
../_images/11cf75757ea772ee8cc13ab36c457855d6093c04d4db9754b038f01560715856.png

Let’s replace the sample as the category by the experiment column:

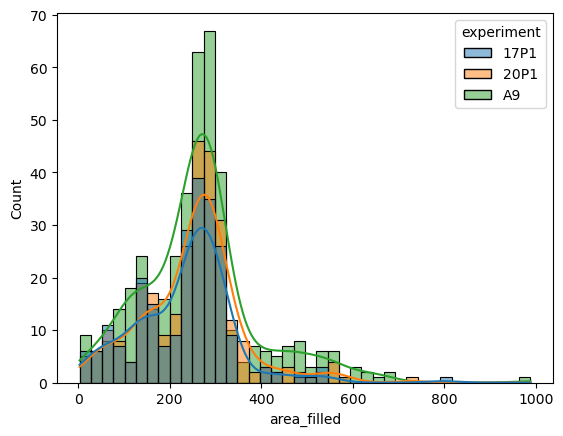

fig4 = sns.histplot(data=big_df, x='area_filled', hue='experiment', kde=True)
../_images/95555f1b8a7fbe90cbd3434af264e2cb70ba602b25e1c16ac5690961c8b074cf.png

If you only want the smoothed histogram estimations rather than the bars, consider using the kdeplot function rather than the histogram:

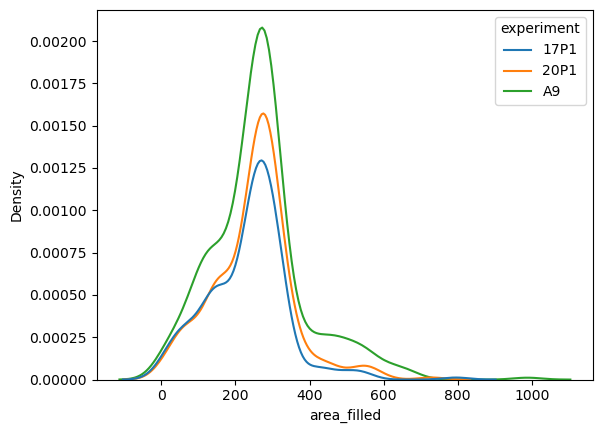

fig5 = sns.kdeplot(data=big_df, x='area_filled', hue='experiment')
../_images/67a9faa77f07c45cf13ff39633b633c79281895ab37d67feb2589b1544e2fddc.png

Plotting: Scatters#

For a more granular insight into the individual data points, let’s take one step back and draw a good old scatterplot and draw two of the above variables against ech other:

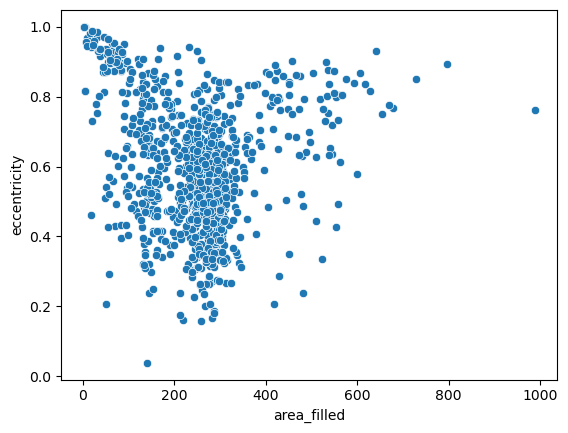

fig6 = sns.scatterplot(data=big_df, x='area_filled', y='eccentricity')
../_images/724882cf25939a091d7bb2e3ff1de3ad896a8fb70928f81d92211fadc27b11a7.png

Again, we can simply pass a categorical variable as hue parameter and highlight the different samples. Let’s look at a different property:

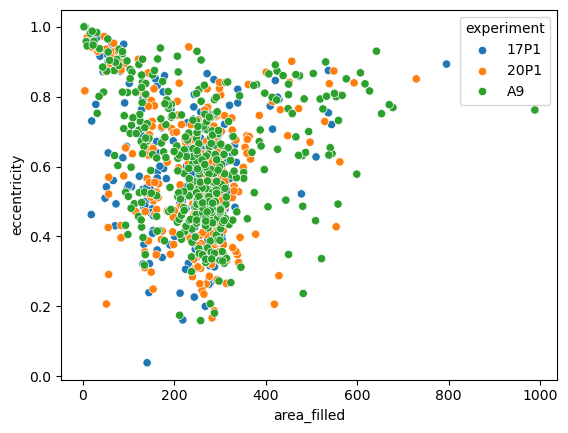

fig7 = sns.scatterplot(data=big_df, x='area_filled', y='eccentricity', hue='experiment')
../_images/cc9ba58610a1970d84346a511c0923890db27c47a18092ee6c0096fd9d1a9479.png

For a smaller number of features, you may want to plot everything against everything - something that may be terribly hard to do in matplotlib. We drop the label column, though - it holds no information about any relevant biology:

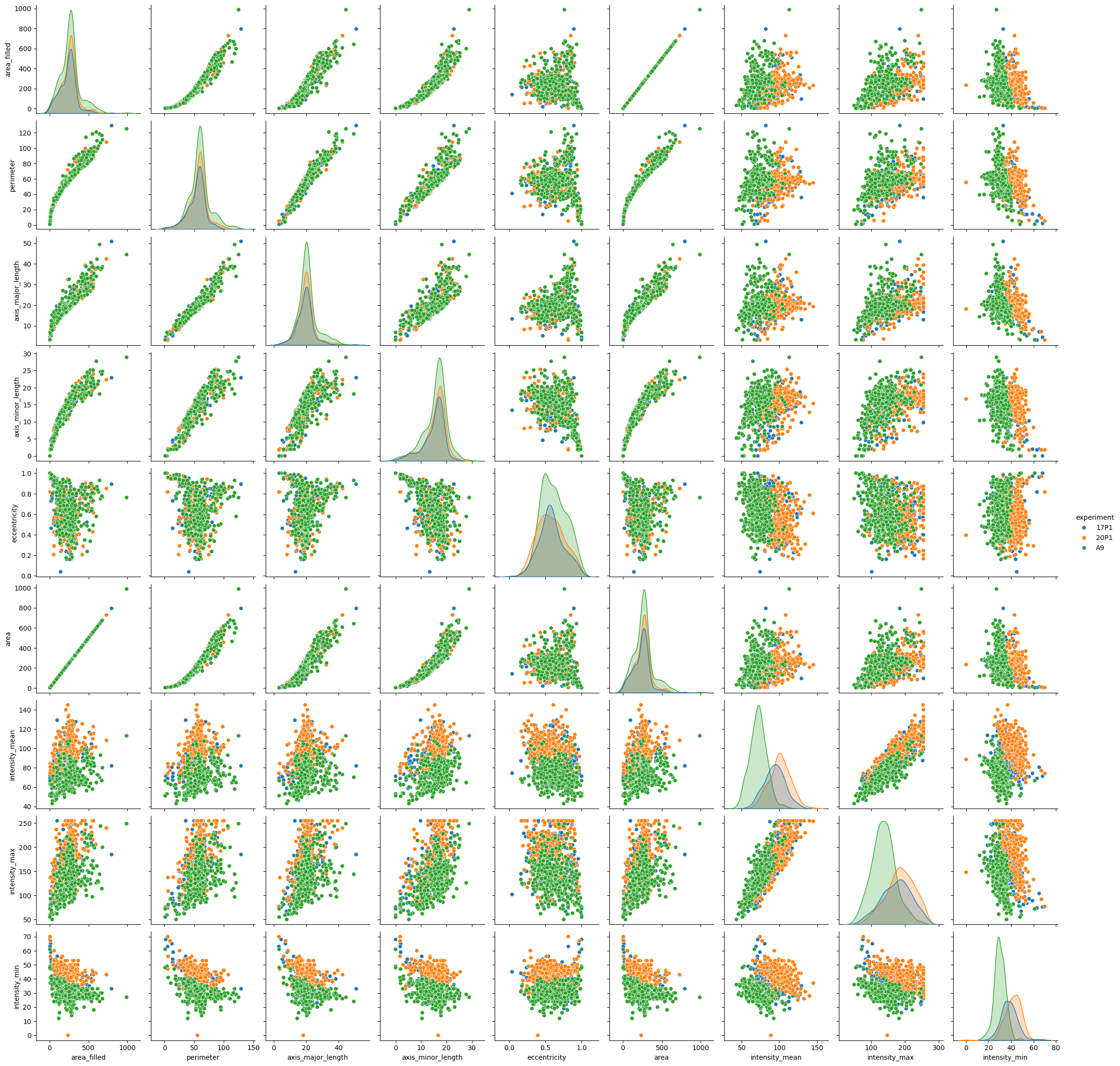

fig8 = sns.pairplot(data=big_df.drop(columns=['label']), hue='experiment')
../_images/d539d089d7187150b619c9b419a9a29de7f57849a70c685cf882866b57aa52cc.png

Saving the plots#

Finally, we can save the plots to a file. For this, we can use the savefig function from matplotlib. We can also specify the resolution of the image in dpi (dots per inch). The command below saves the pairplot to a file called pairplot.png with a resolution of 300 dpi in the current working directory:

fig8.savefig('pairplot.png', dpi=300)

Exercise#

  • Replace the area_filled variable with intensity_mean (or another column) in the code above and see how the plots change.

  • Try out other seaborn functions to visualize data distributions split by categories, like sns.catplot and sns.jointplot, as shown in the seaborn documentation.
